Target Video Capture
Description
The target video capture workflow is the largest workflow in Live Edge. This workflow receives messages from Charter add insertion gear, it makes decisions based on probe state and ultimately triggers a video capture of add breaks and saves the video to an s3 bucket. This workflow also uses our new subflow capability.

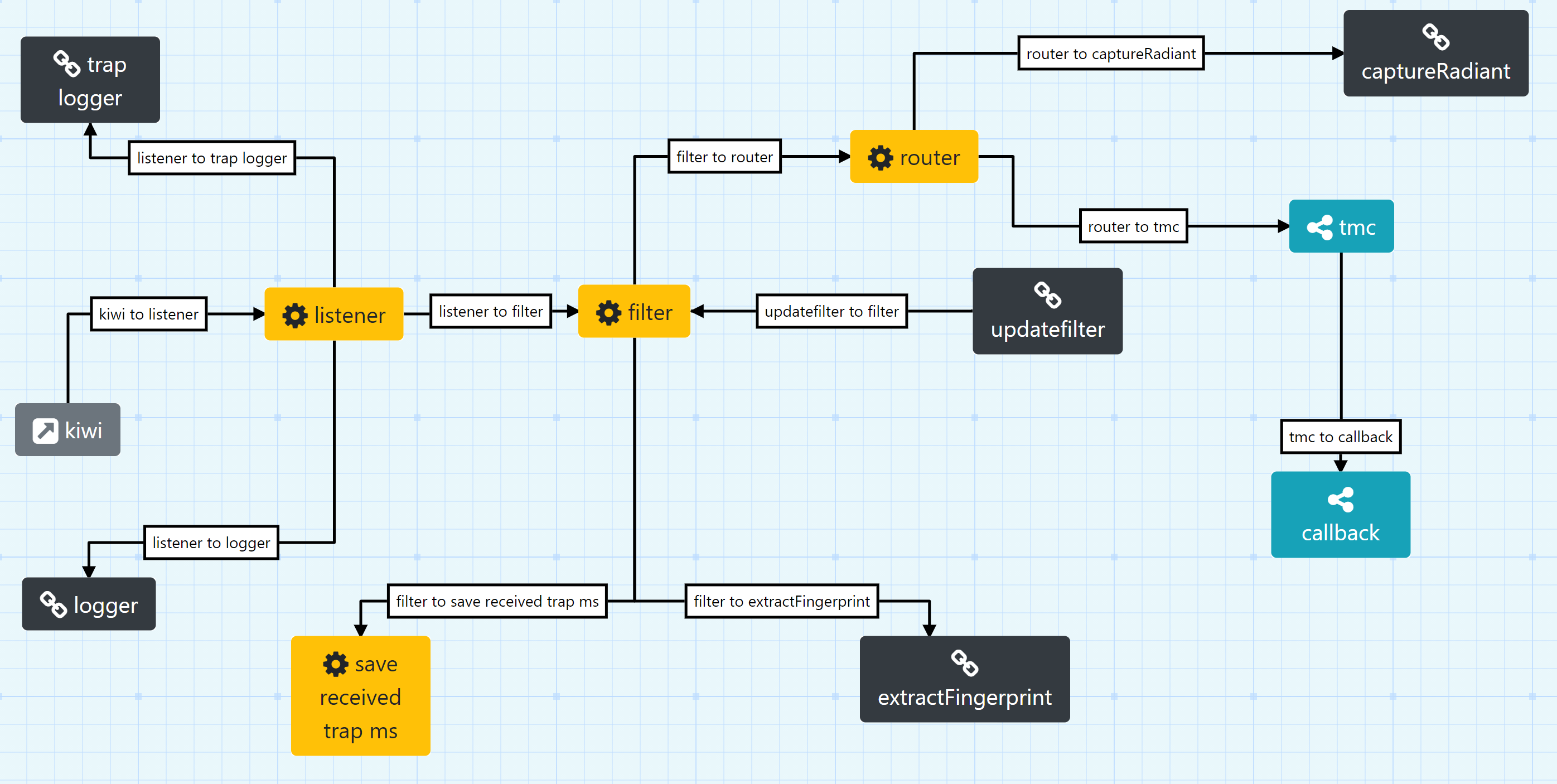

Composition
NODES:
| Name | Type |
|---|---|
| Trap Logger | Subflow |
| Logger | Subflow |
| Kiwi | Edge |
| Listener | Micro Service |
| Filter | Micro Service |
| Router | Micro Service |
| Save Received Trap MS | Micro Service |
| Extract Fingerprint | Subflow |
| Update Filter | Subflow |
| Capture Radiant | Subflow |
| TMC | API |
| Callback | API |
CONNECTIONS:
| Name | Type | Data |
|---|---|---|
| Listener to Trap Logger | Subflow | trapLogger |
| Listener to Logger | Subflow | logger |
| Kiwi to Listener | SNMP | 10.43.101.194 |
| Listener To Filter | RabbitMQ | snmpQ |
| Filter To Router | RabbitMQ | addstartQ |
| Filter To Save Received Trap MS | RabbitMQ | savereceivedtrapQ |
| Filter To Extract Fingerprint | Subflow | extractFingerprint |
| Update Filter To Filter | Subflow | updatefilter |
| Router To Caputure Radiant | Subflow | captureRadiant |
| Router To TMC | API | twcharlotte.tmcserver.com |
| TMC To Callback | API | tmc-callback.test.reach.spectrumtoolbox.com/api |
