Chapter 12
Scan Update
Description
The Scan Update Workflow is responsible for saving the Network Scanning results when a Verification job completes. The results of a Verification job sends a message to the Scan Update Service to update the Network Scanning View in Live Edge.

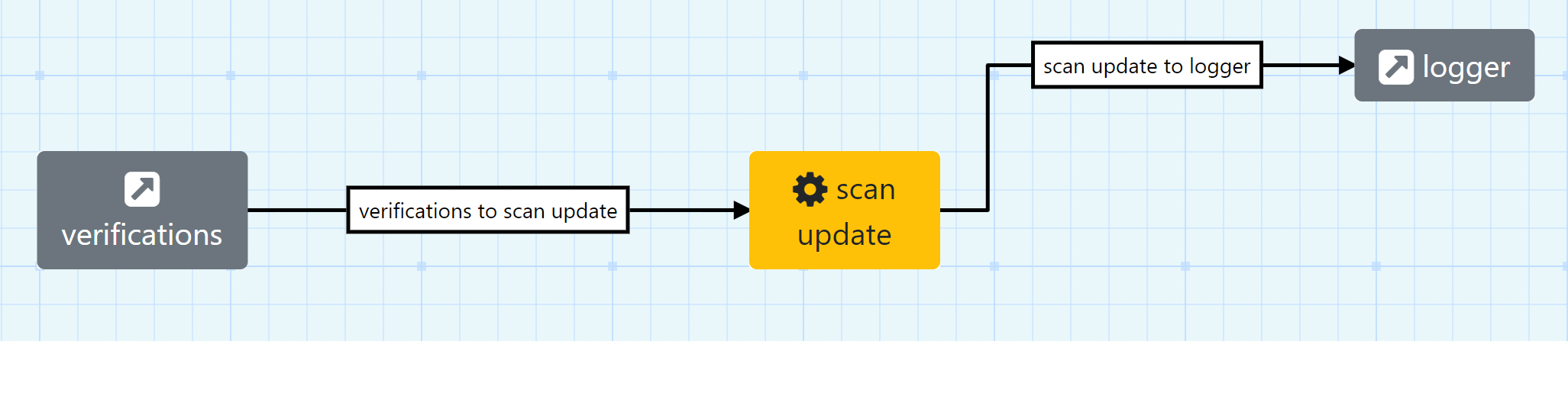

Composition
NODES:
| Name | Type |
|---|---|
| Verifications | Edge |
| Scan Update | Microservice |
| Logger | Logger |
CONNECTIONS:
| Name | Type | Data |
|---|---|---|
| Verifications to Scan Update | RabbitMQ | scanQ |
| Scan Update to Logger | RabbitMQ | loggerQ |
