Chapter 6
Quality
The Quality screen is used to view results of the audio and video quality tests.
Search Feature
The Search feature will filter the list by any column in the table for quick lookup. It behaves like a type ahead filter. The Search feature will be disabled when the user using the Advanced Search.

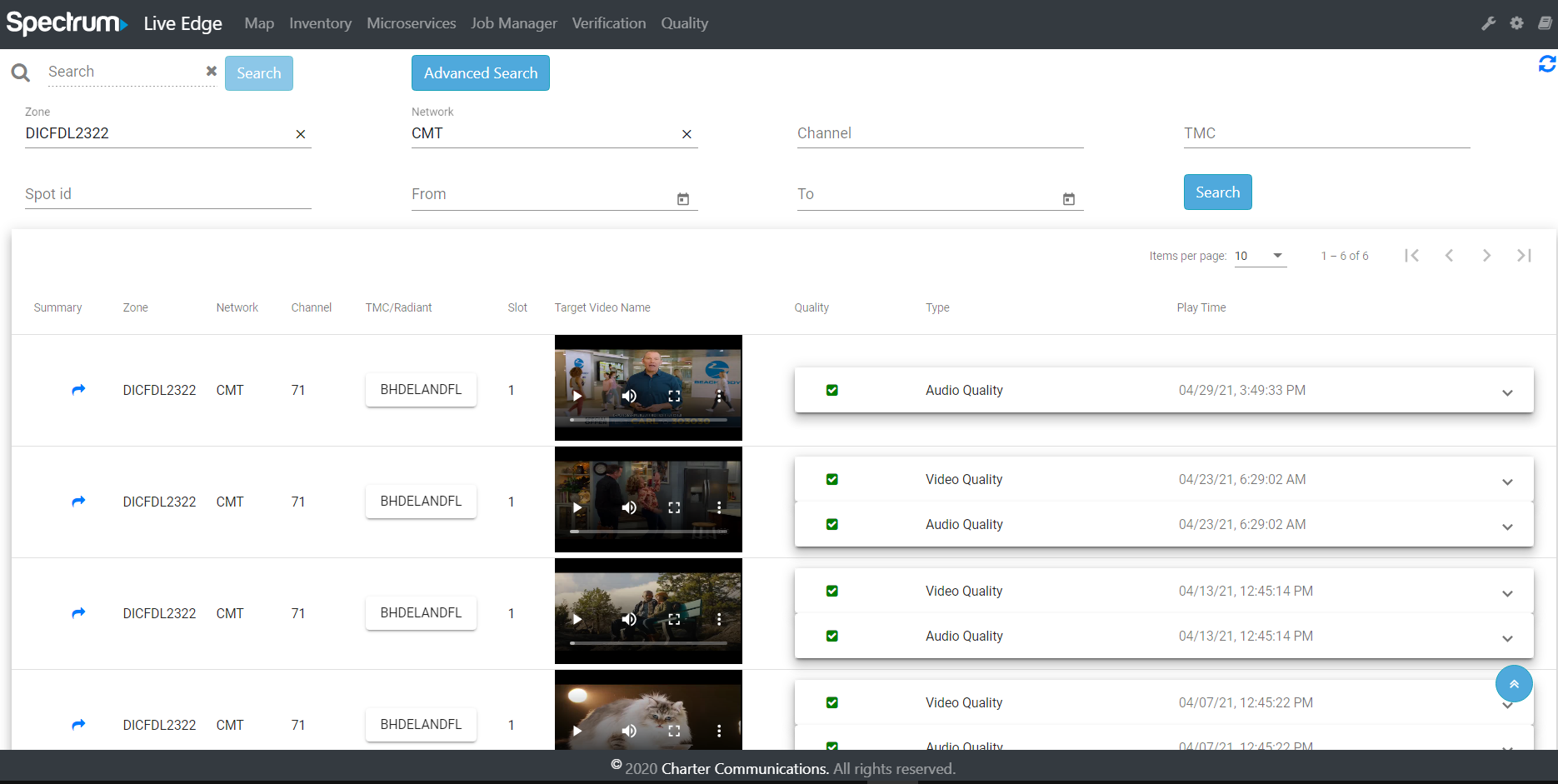

Advanced Search
Advanced Search allows users to input Zone, Network, Channel, Date Range, TMC, and Spot ID filed. If a user enters a Zone and a Network it shows results for that Network in that Zone. User can use the Advanced Search by pressing Enter key or clicking the Search button after entering a value into one of the fields.

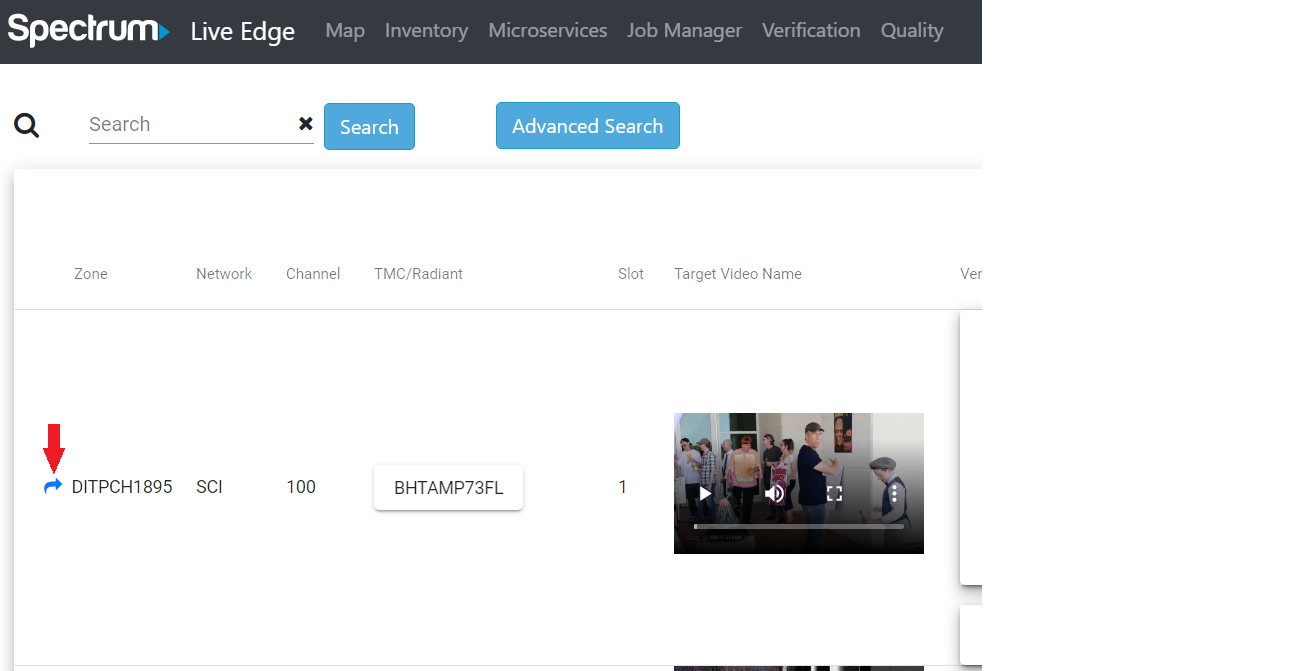

Summary

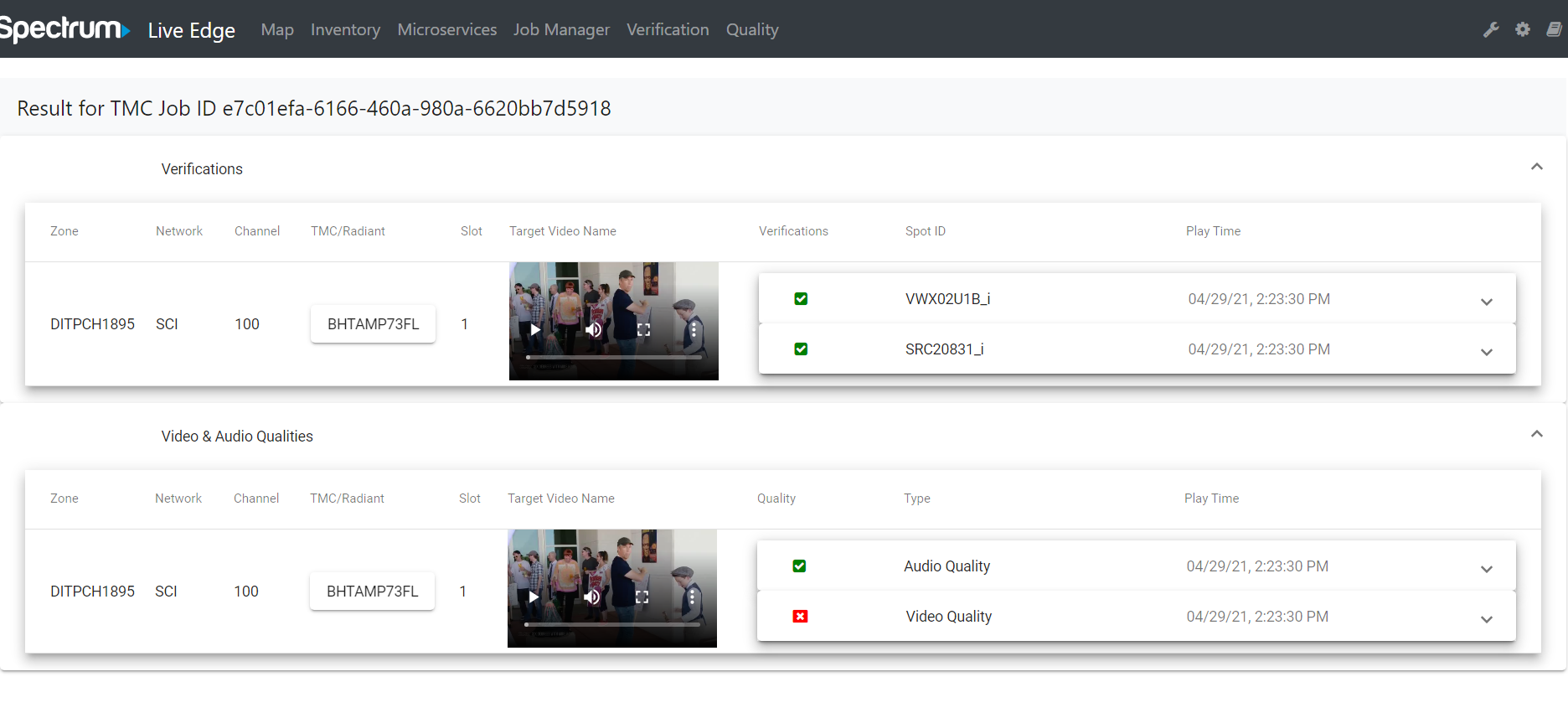

Clicking the arrow icon allows the user to go to a detail view of the verification job in a new tab.
Results
The results have color coded icons to show the status of the job. The job in each row represents all the quality tests performed for each ad break. The target video can be played to check the results by hand.

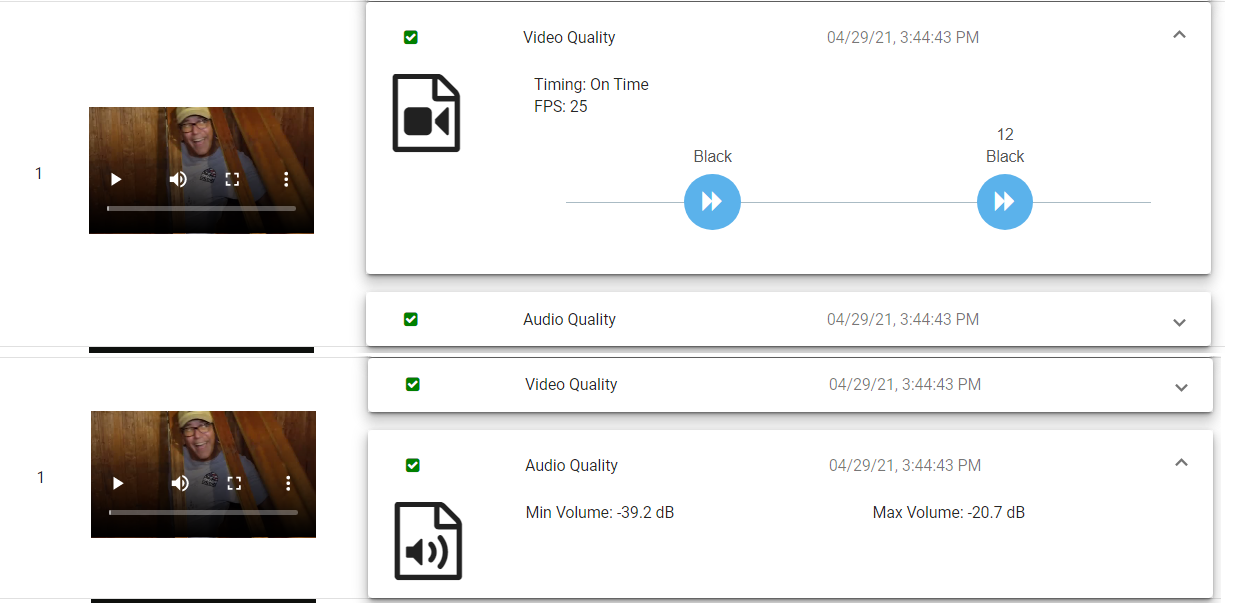

Quality Results
The Quality results are used to check both video and audio quality of the ad break.
Video Quality
The Video Quality panel shows the result of the insertion timing test. When the video is inserted too early or too late, the icon will show red. The user is able to click on the icons in the video timeline to jump to the add insertion point.
Drift Detection
Drift Detection useses keyframe comparison to find blackframes and work backwards or forewards to find the drift timing.
Audio Quality
The Audio Quality panel displays the result from the audio quality test.
Silence Detection
The Audio Quality job performs a silence detection test to find any long periods of silence in the ad break.
Review
The user is able to manually review the results of either quality check.
