Home

Description

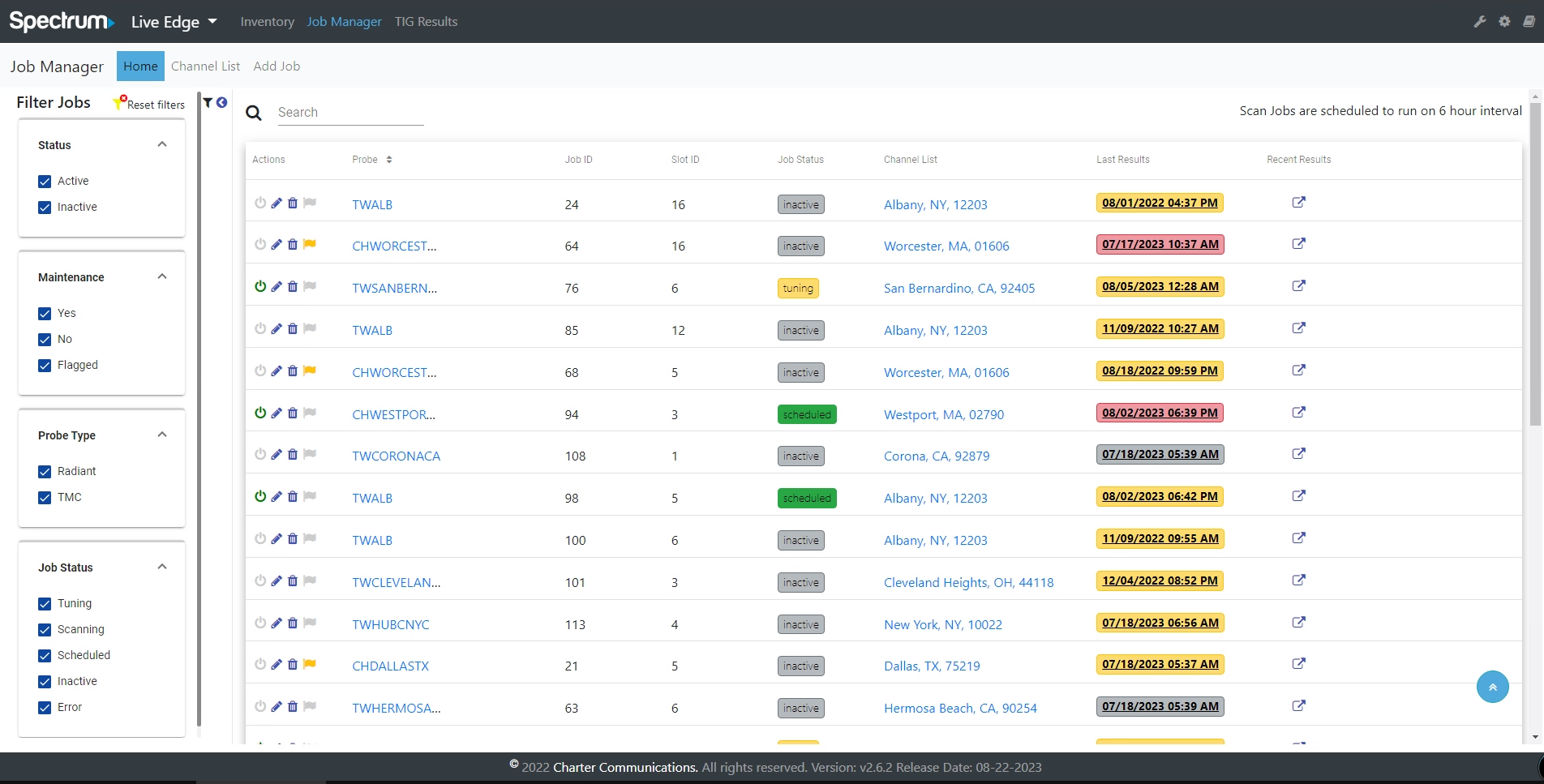

The defalut view or home view, shows a summary view of configured jobs and their corresponding job states. This view is used to monitor and configure running jobs in Guide Check.

Action

The Action flag both indicates if the job is being used and can be clicked to enable or disable the job.

The TMC/Radiant Link can be used for loading the TMC Manager into a new browser tab.

Status

They let the user know the status of the job in real-time.

    Status includes:
  • Tunning
  • Scanning
  • Scheduled
  • Inactive
  • Error

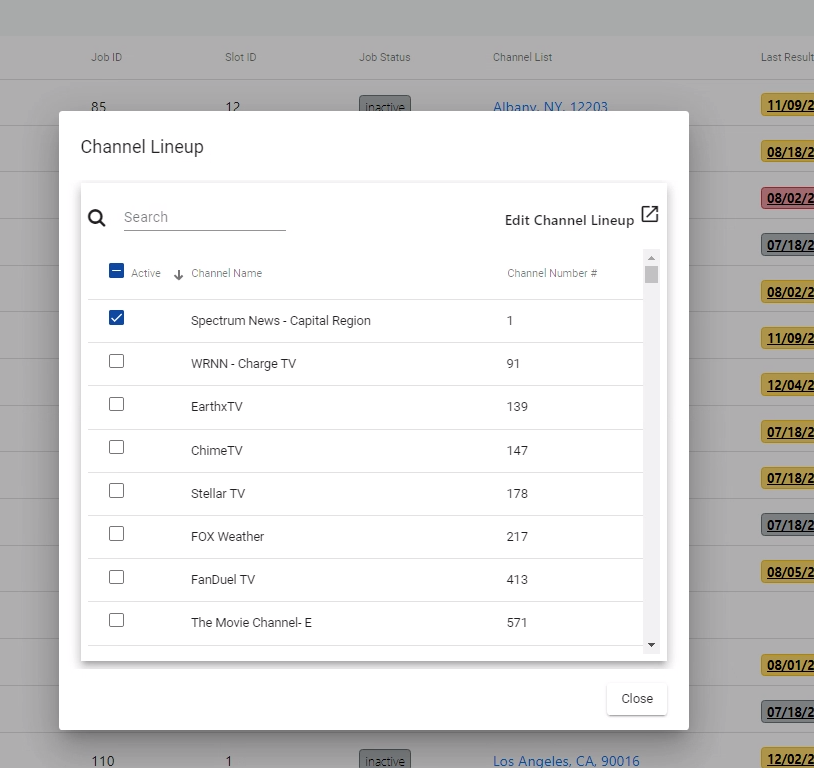

Channel List

The Channel List button is used to manage system channel list as the modal window.

Delete Job

Clicking the trash icon in the action column will confirm the user wishes to remove the job manager.

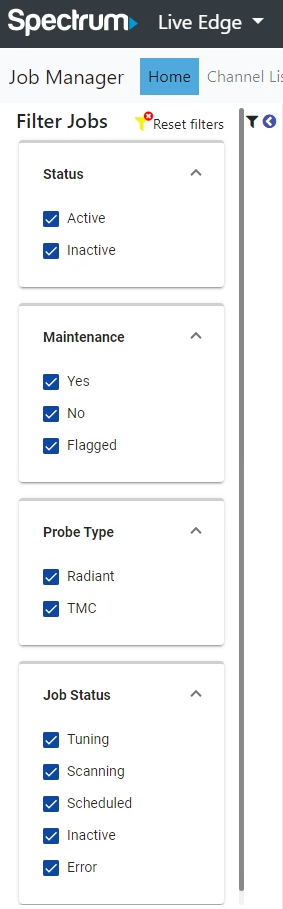

Filter Jobs

The Filter Jobs can be collapse or expand after clicking the filter icon on left-menu. It allows the user to filter jobs according to their active state.

Job manager

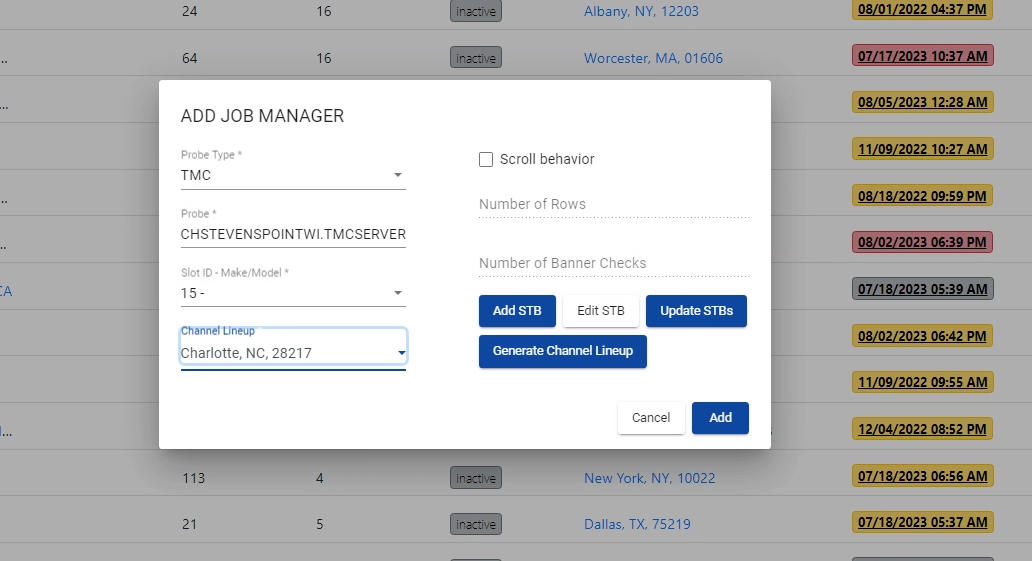

Add Job

When clicking Add Job on the sub-navigation it will display a modal window allowing the user to add jobs.
This button only appears when accessing the Home page.

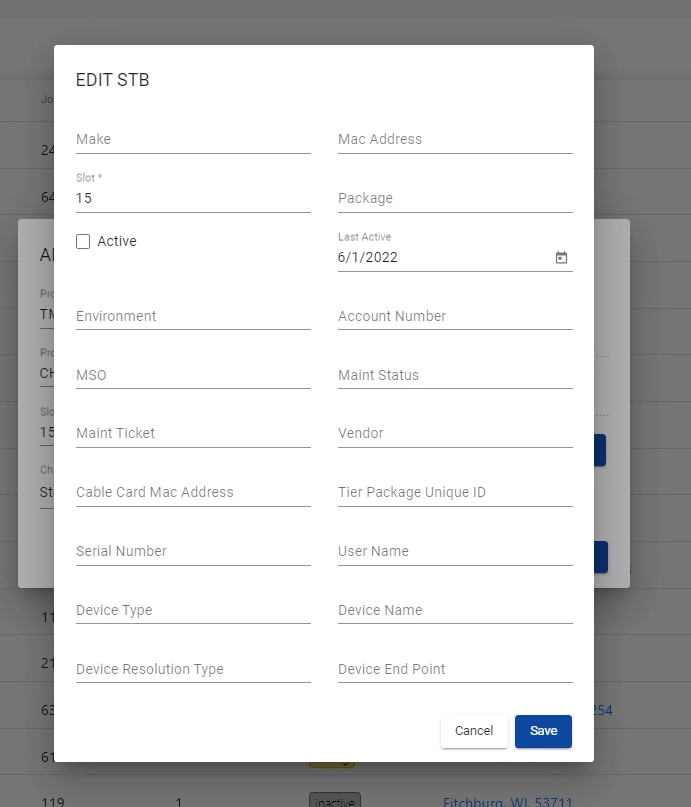

User can add or edit STB manually for TMCs via ADD/Edit STB button

When clicking the Update STB button, the UI will automatically get the slotIDs of that TMC.

Generate Channel Lineup button will appear after the user selecting the ZoneID and TMC/Radiant. They will automatically generate Channel-Lineup after being clicked.
Click the Add button to add a new job, or Cancel to close the form without doing anything.

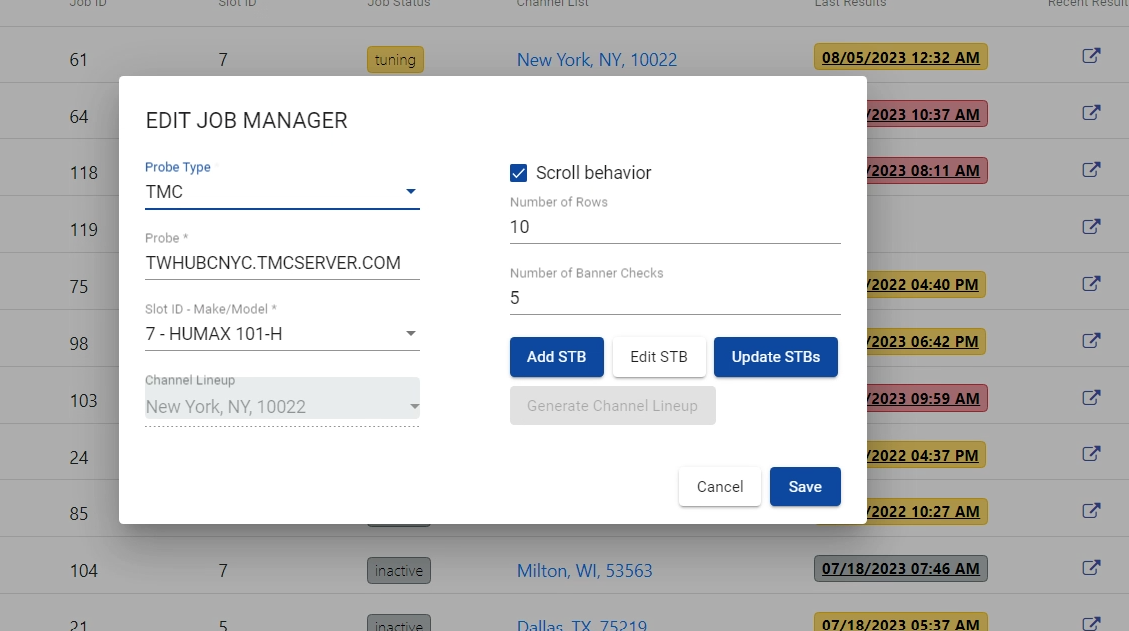

Scoll behavior

When “Scroll Behavior” is selected, the Channel Lineup fields will be disable. Number of Rows field is the number of lines scrolled. Number of Banner Checks field is the number of times to check the banner ads.

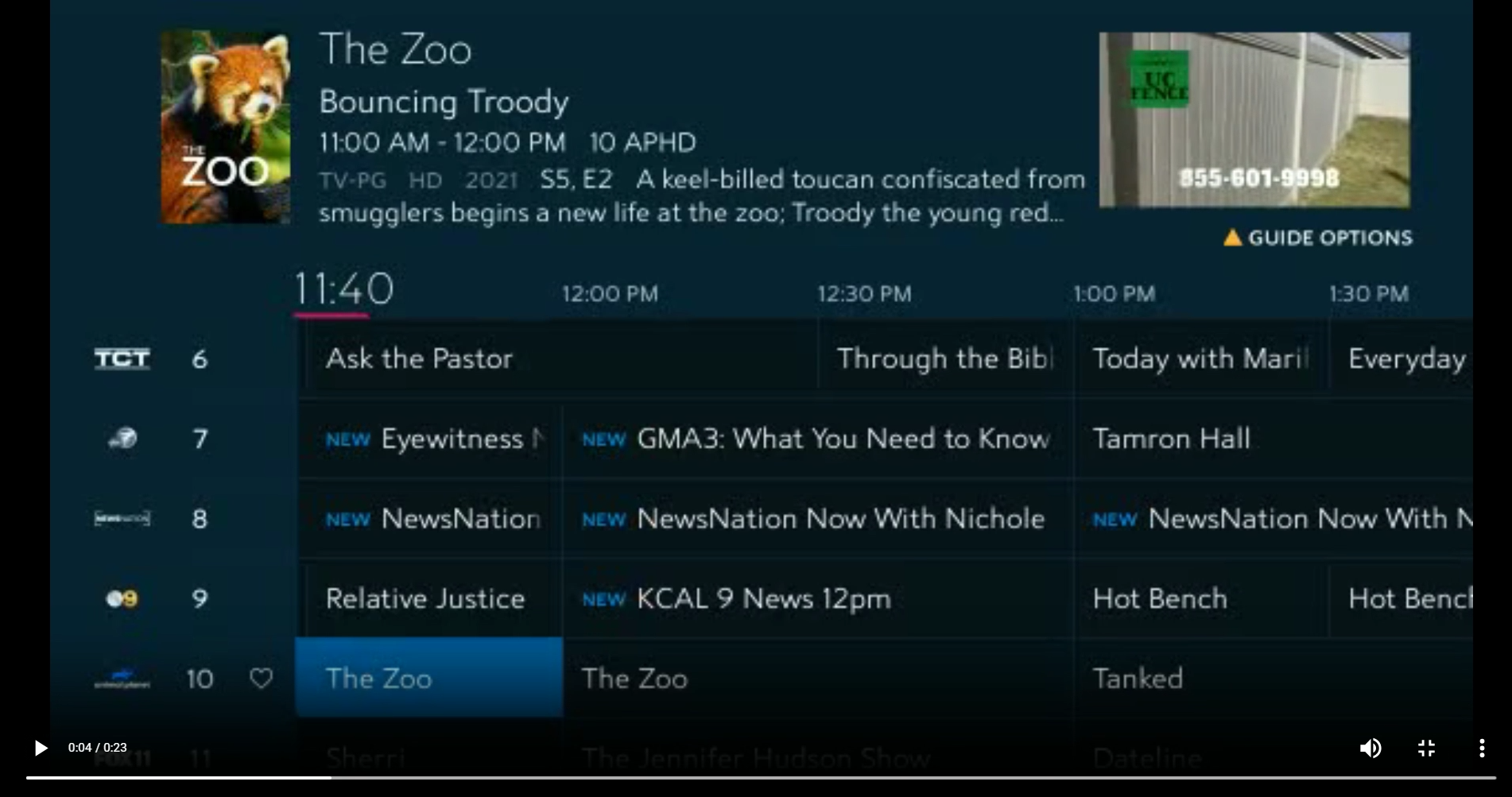

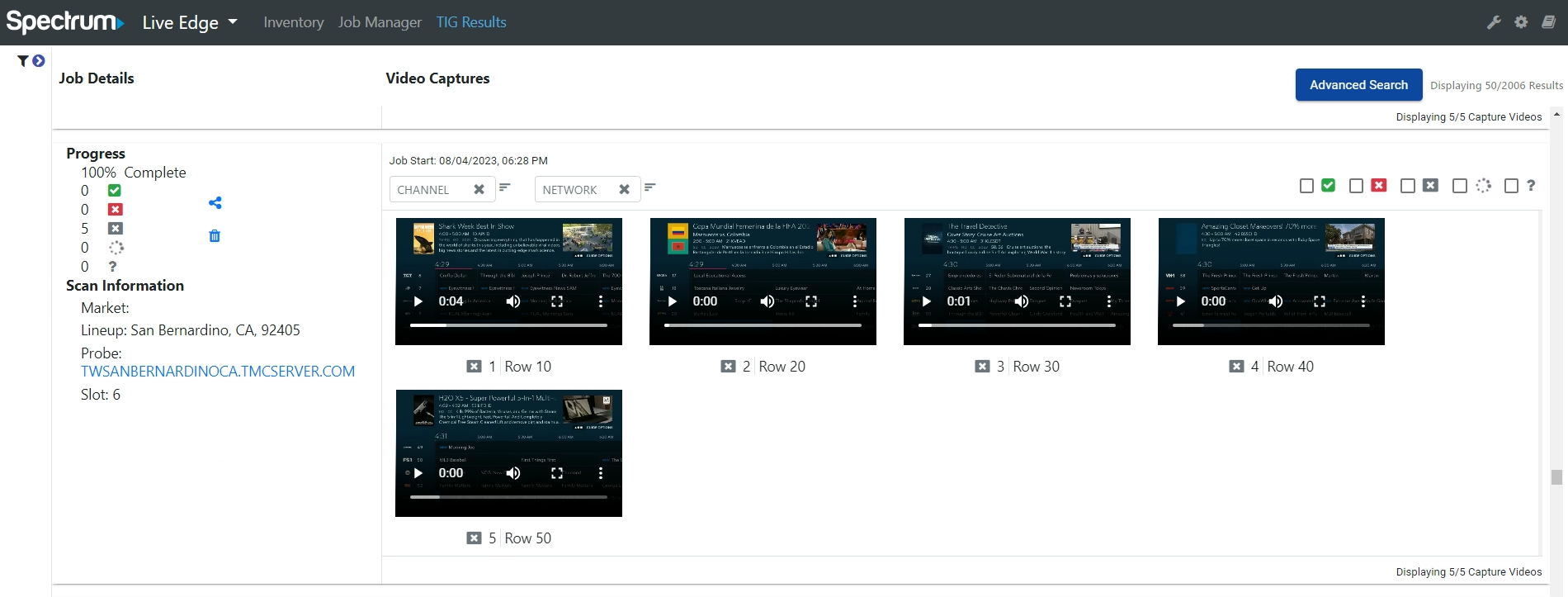

e.g: Number of Rows: 10, Number of Banner Checks :5 When the user sets Number of Rows: 10, Number of Banner Checks: 5, it means the Guide screen will scroll 10 times and check the banner 1 time and repeat until it reaches 5 times.

Edit Job

Jobs can be edited by clicking on the pencil icon in the action column of the job manager home view.
