Chapter 11
Start Split Signal
Description
The Start Split Signal Workflow is responsible for starting the split signal job. The Start Split Signal Service is triggered by calling the Split Signal API. Messaged received by Service are processed, results are logged using the Logger Subflow and saved using the Jobs API.

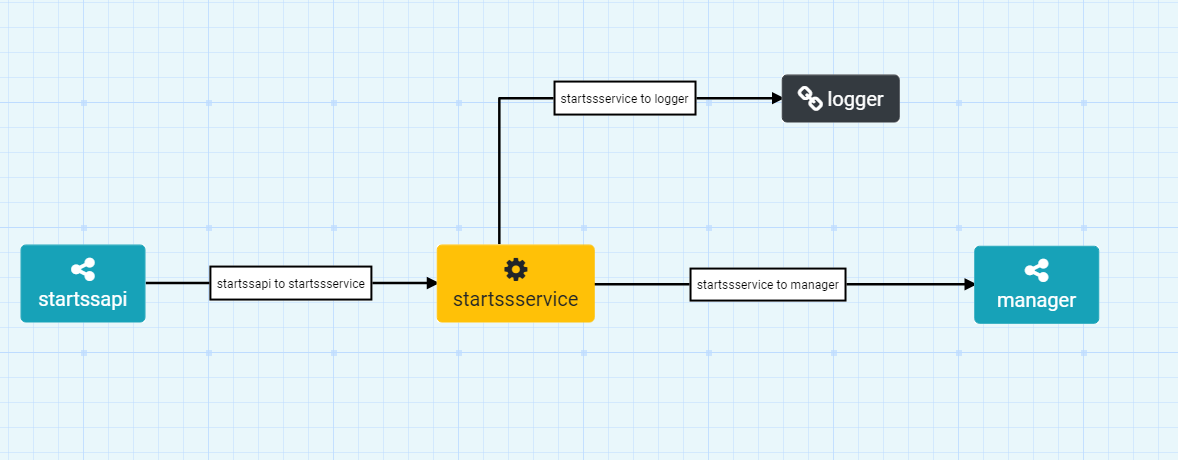

Composition
NODES:
| Name | Type |
|---|---|
| Start SS API | API |
| Start SS Service | Microservice |
| Logger | Subflow |
| Manager | API |
CONNECTIONS:
| Name | Type | Data |
|---|---|---|
| Start SS API to Start SS Service | RabbitMQ | startssQ |
| Start SS Service to Logger | Subflow | logger |
| Start SS Service to Manager | API | host.com |
