Extract Fingerprint

Description

The Exract Fingerprint Workflow is responsible for extracting the audio fingerprints from the ACRCloud. This data is used by the Audio Fingerprint workflow to determine if it matches the audio from the target video file.

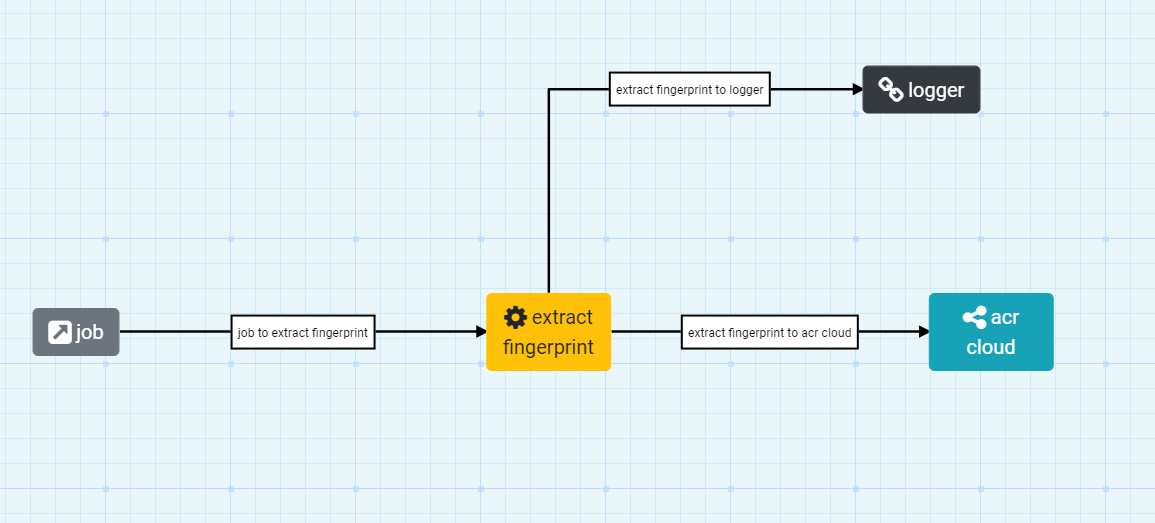

Composition

NODES:

Name	Type
Job	Edge
Extract Fingerprint	Microservice
Logger	Subflow
ACR Cloud	API

CONNECTIONS:

Name	Type	Data
Job to Extract Fingerprint	RabbitMQ	atvextractfingerprintQ
Extract Fingerprint to Logger	Subflow	logger
Extract Fingerprint to ACR Cloud	API	api.acrcloud.com
