Capture
Description

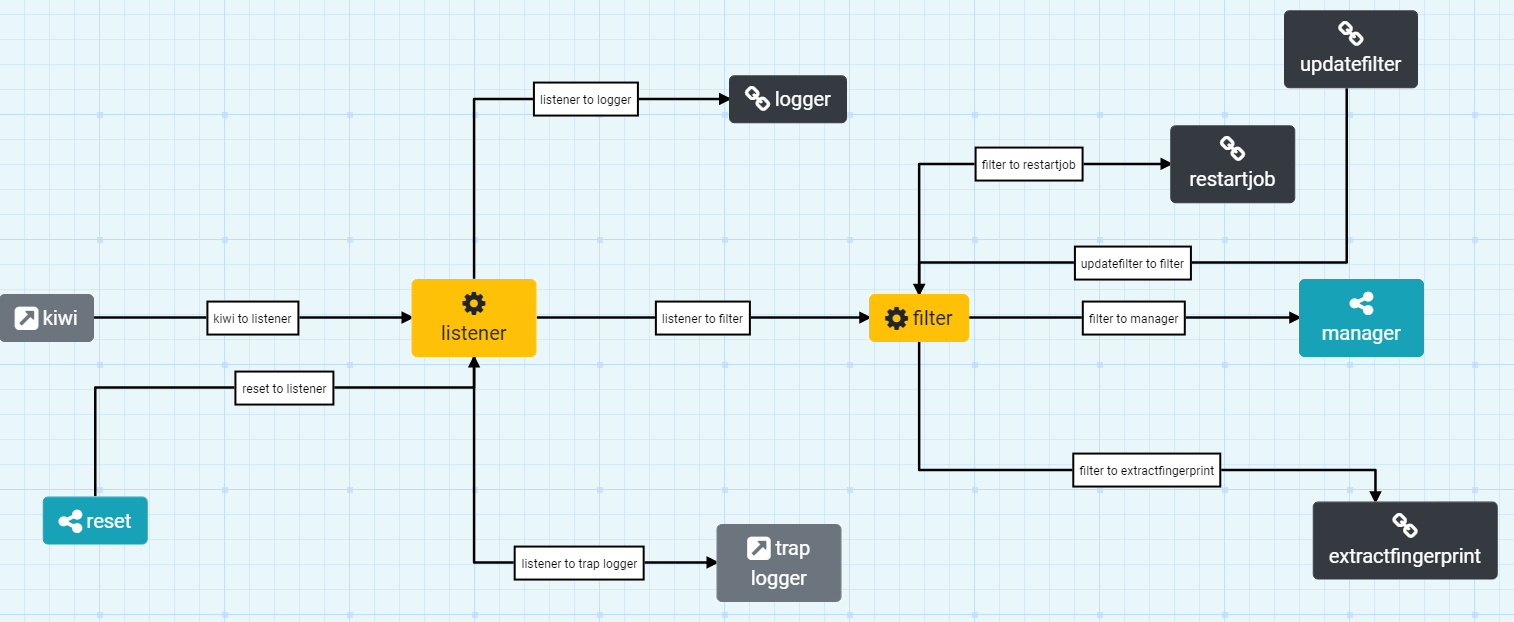

The Capture Workflow is the largest workflow in ATV. This workflow receives messages from Charter add insertion gear, it makes decisions based on probe state and ultimately triggers a video capture of an add break and saves the video to an s3 bucket. This workflow also uses our new subflow capability.
Composition
NODES:
| Name | Type |
|---|---|
| Kiwi | Edge |
| Listener | Microservice |
| Reset | API |
| Logger | Subflow |
| Trap Logger | Edge |
| Filter | Microservice |
| Restart Job | Subflow |
| Update Filter | Subflow |
| Manager | API |
| Extract Fingerprint | Subflow |
CONNECTIONS:
| Name | Type | Data |
|---|---|---|
| Kiwi to Listener | TCP | host.com |
| Listener to Logger | Subflow | logger |
| Listener to Filter | RabbitMQ | atvtrapQ |
| Listener to Trap Logger | RabbitMQ | traploggerQ |
| Reset to Listener | RabbitMQ | atvresetQ |
| Filter to Restart Job | Subflow | logger |
| Update Filter to Filter | Subflow | updatefilter |
| Filter to Manager | API | https://manager.tmc.charter.com |
| Filter to Extract Fingerprint | Subflow | extractfingerprint |
