Chapter 7
Audio Fingerprint
Description
The Audio Fingerprint Workflow is responsible for matching the audio fingerprint of a given source video with the advertisements contained in the target video capture. This workflow is triggered by the compare job, checks the fingerprint match and saves the resluts back to the job manager in ATV.

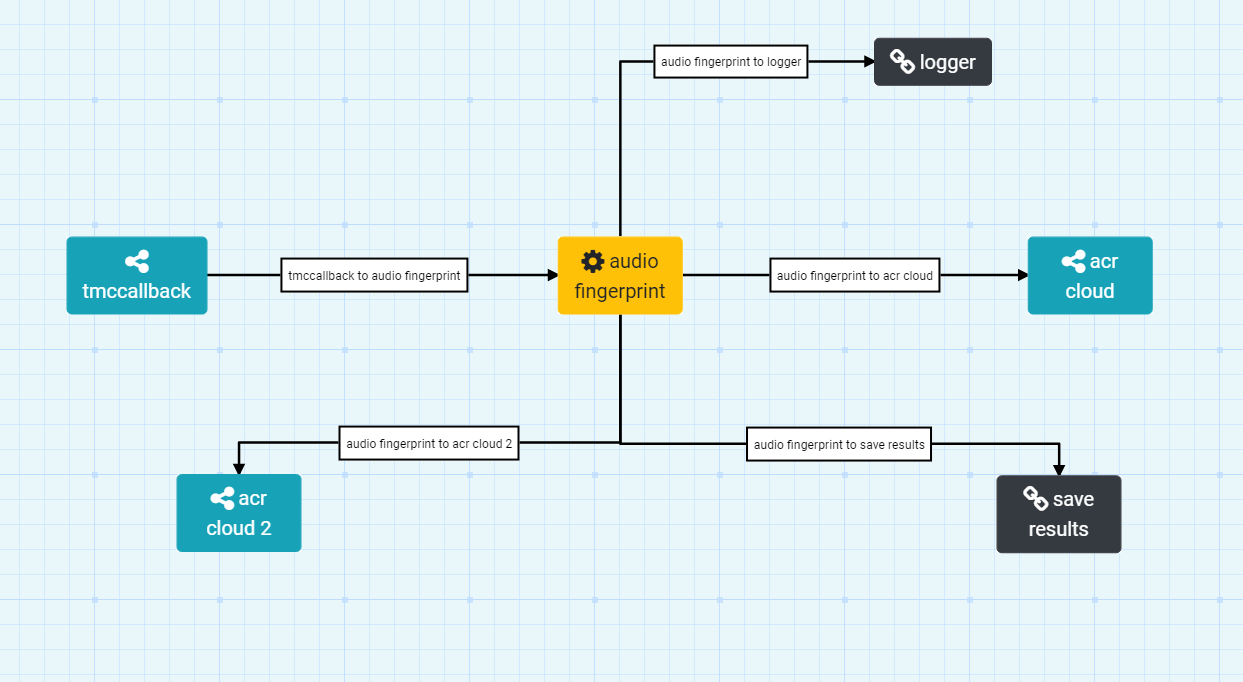

Composition
NODES:
| Name | Type |
|---|---|
| TMC Callback | API |
| Audio Fingerprint | Microservice |
| Logger | Subflow |
| ACR Cloud | API |
| Save Results | Subflow |
| ACR Cloud 2 | API |
CONNECTIONS:
| Name | Type | Data |
|---|---|---|
| TMC Callback to Audio Fingerprint | RabbitMQ | atvaudioQ |
| Audio Fingerprint to Logger | Subflow | logger |
| Audio Fingerprint to ACR Cloud | API | identify-us-west-2.acrcloud.com/ |
| Audio Fingerprint to Save Results | Subflow | saveresults |
| Audio Fingerprint to ACR Cloud 2 | API | saveresults |
