Hpe

Description

HPE stands for High-priority Events, where the user can decide which netowrks to monitor durring a high dollar time frame.

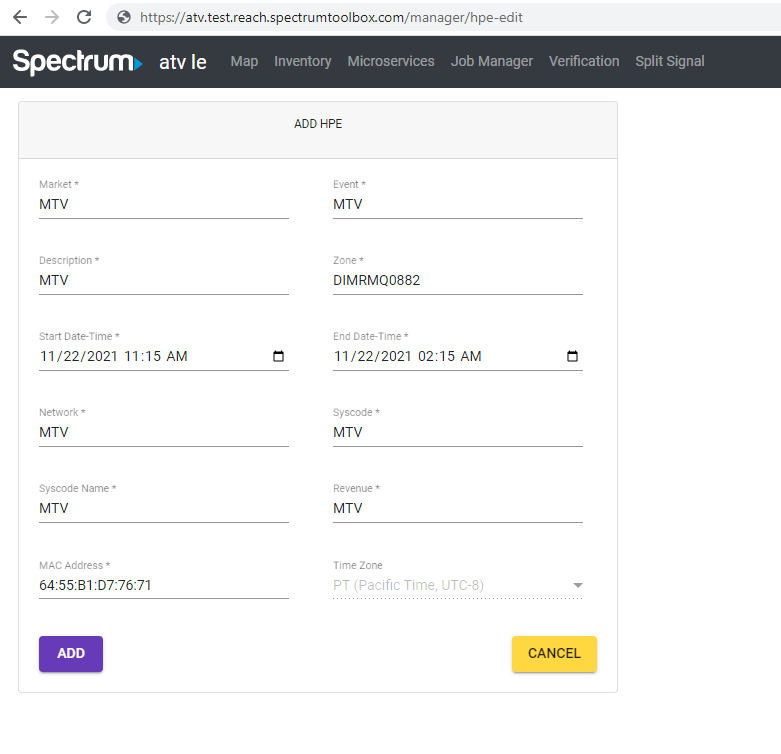

Add HPE

Use the plus icon to manually add HPE. Users need to enter the exact Start Date-Time, End Date-Time and Zone, Network, MAC Address that want to run.

Click the Add button to add a new HPE job, or Cancel to close the form without doing anything.

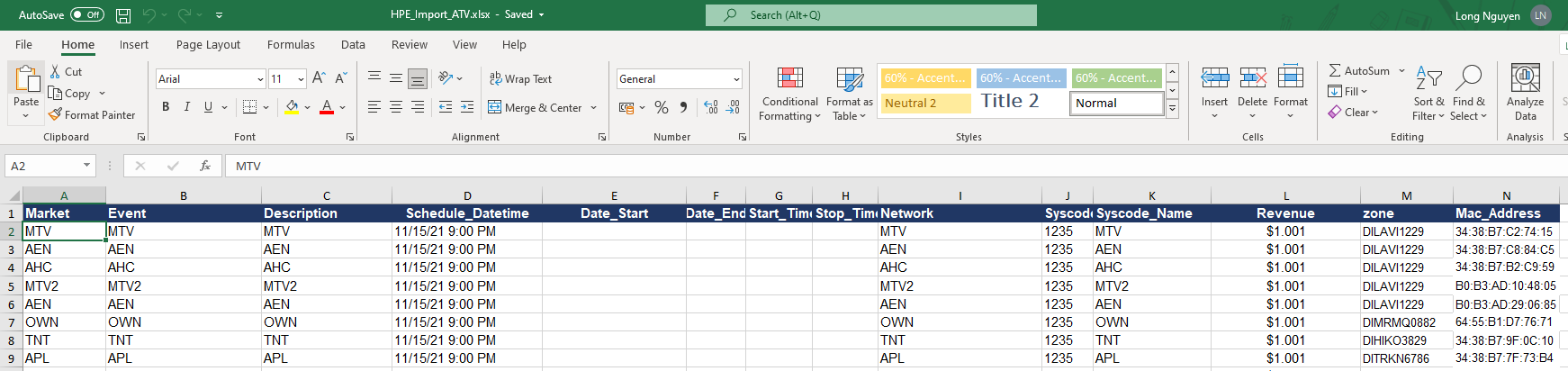

Upload HPE

Users can click the “Upload high priority event” button to add multiple HPE jobs at the same time formatted in an Excel spreadsheet.

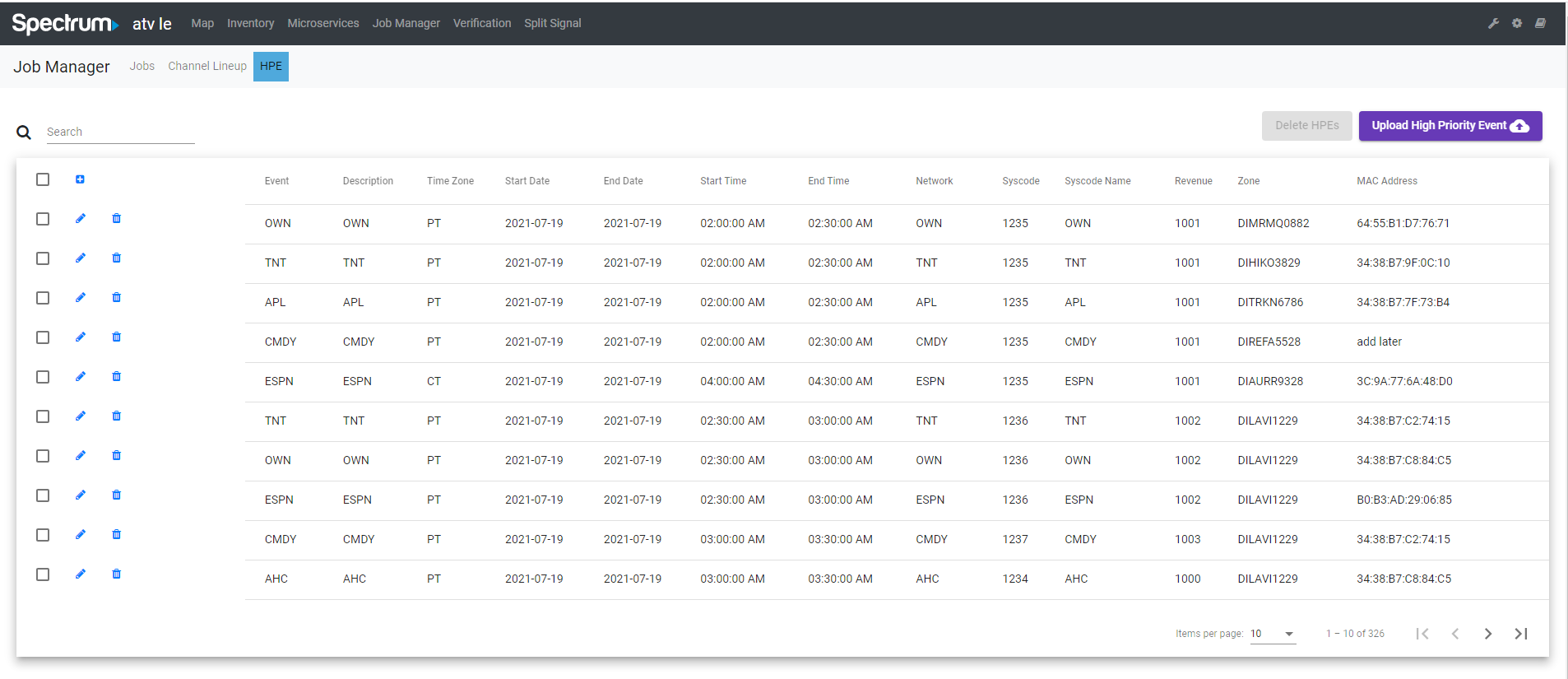

Edit HPE

HPE jobs can be edited by clicking on the pencil icon in the action column of the HPE job manager view.

Delete HPE

The Delete HPE icon is represented as a trash can and will warn the user before removing the HPE.

HPE Work

HPE starts based on the uploaded StartDate and StartTime

WHEN THE CHECKING TIME IS REACHED ((E.g: 9:00, 9:30, 10:00))

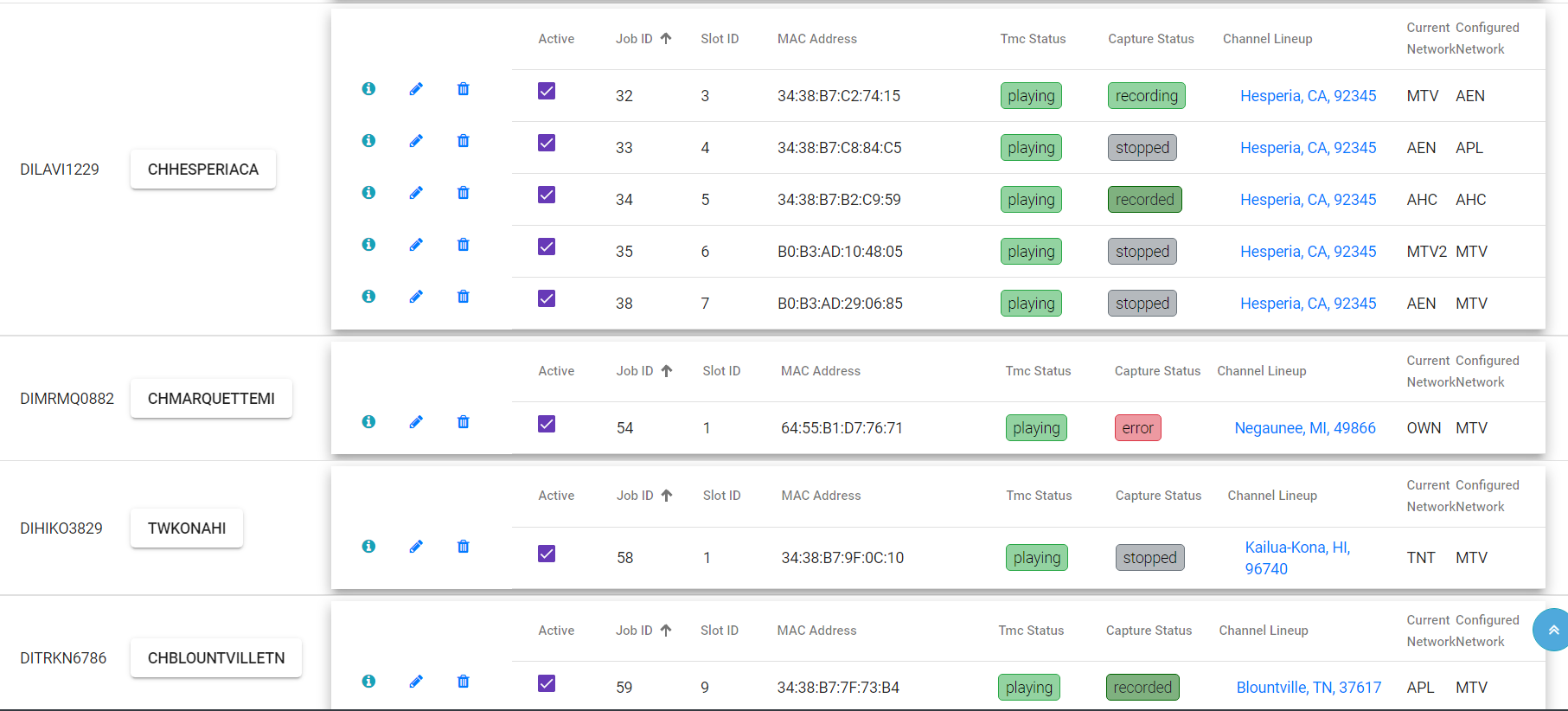

  • Info icon in JobManagement appear only after the StartDate and StartTime are reached

  • An info icon appears next to the zoneID of jobManagement, stated that “This zone is having high priority event at “

  • HPE will select the ACTIVE jobManagement(s) based on the ZoneID and MAC Address. Therefore, it’s possible that there will be multiple HPE jobs with the same ZoneID (but difference of MAC Address) are running simultaneously.

  • HPE will start the jobManagement with the HPE network IN THE CHECKING TIME, in case there’s no jobManagement running

  • If the jobManagement is having another job running IN THE CHECKING TIME, the current job will be stopped and switched to the HPE

  • If there’s error while starting HPE job (TMC’s not available, script cannot be found, cannot login, …), it will also try to start again at the next checking time

  • The jobManagement will continuously run HPE network until the EndTime

  • The job should continue the HPE while in HPE duration, when the user manually restart it (turn off and on again)

  • In case there is NO active job in the Zone, ALL of the INACTIVE jobs should be automatically activated, based on the MAC Address

  • The Current Network column will switched to the HPE network

HPE stops based on the uploaded EndDate and EndTime

WHEN THE CHECKING TIME IS REACHED (E.g: 9:00, 9:30, 10:00)

  • Info icon in JobManagement disappear only after the EndDate and EndTime are reached

  • If the HPE EndDate and EndTime were reached IN THE CHECKING TIME, the jobManagement(s) should go back to run as the Configured Network

  • If there’s error while stopping HPE job (TMC’s not available, script cannot be found, cannot login, …), it will try to stop at the next checking time

  • Info icon next to the zoneID of jobManagement disappeared

  • Verification and Quality jobs no longer have info icon noticing the HPE

  • The Current Network column now has the same value as the Configured Network
